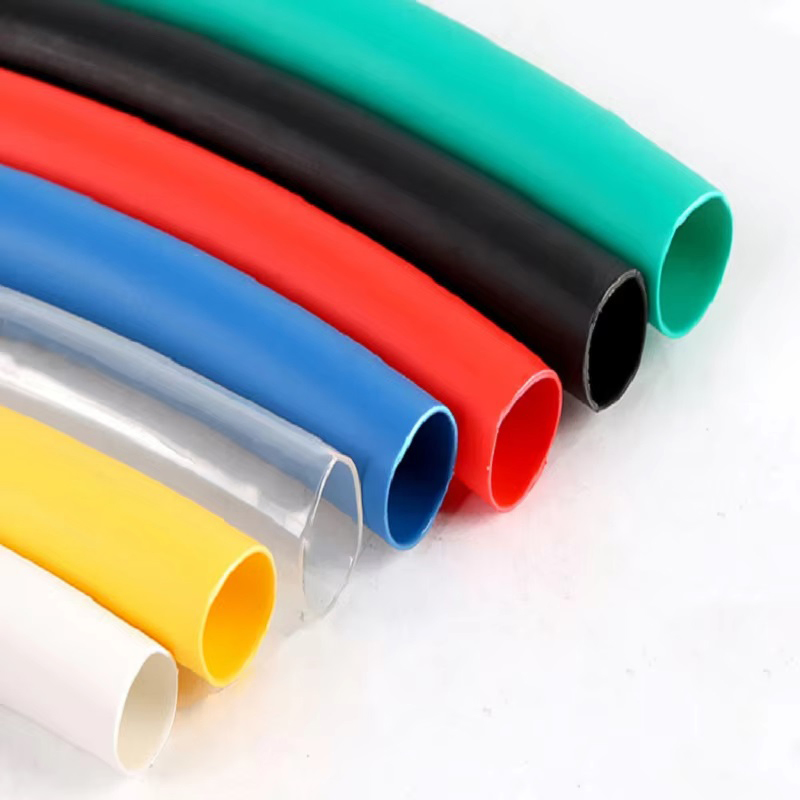

Color Strong Resistance to Shrinkable Sleeve Flexible Heat Shrink Tube

1 / 5

Color Strong Resistance to Shrinkable Sleeve Flexible Heat Shrink Tube

Customization:	Available
Certification:	RoHS
Color:	Black, Blue, Green, White, Yellow

Send Inquiry

Product Description

Basic Info.

Model NO.

Heat Shrink Tube

IP Rating

IP66

Usage

Optical Cable, Lighting, Electric Wire, DVI, HDMI

Material

EVA/Mh/Mca

Type

Heat Shrinkable

Working Temp.

-55°~+125°

Size

0.6mm~180mm

Packaging & Delivery

Package Size

10.00cm * 20.00cm * 10.00cm

Gross Weight

1.000kg

Capacity

500,000m/Month

Transport

Carton

Product Description

✓Harmful elements and halogen elements passed SGS test.

✓Free from Organotin compounds, Asbestos, and Formaldehyde.

✓Wide working temperature range: -55°C to 125°C.

✓Complete shrinkage at 110°C (ultra-thin) or 120°C (normal).

✓Axial shrinkage less than 5%; soft and flame retardant.

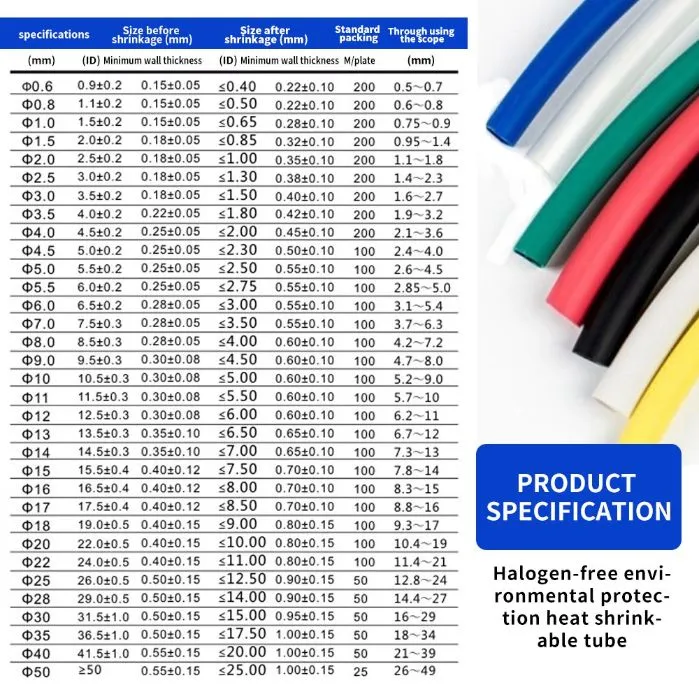

✓Full specifications from 0.6mm to 180mm (Customizable).

✓Easy to use with oven or hot air gun heating.

✓Compliant with SONY and EU ROHS environmental standards.

Category	Project	Test Conditions	Technical Requirements
Physical properties	Tensile strength /MPa	/	≥10.4
	Elongation at break /%	/	≥200
	Tensile strength after aging	158ºC x 168hr	≥7.3
	Elongation after aging	158ºC x 168hr	≥100
	Thermal shock	250ºC x 4hr	Don't crack
	Low softness	-30ºC x 1hr	Don't crack
Electrical properties	Withstand voltage (300V)	UL224	1500V No breakdown
	Withstand voltage (600V)	UL224	2500V No breakdown
	Volume resistivity	/	≥1x10¹⁴ ω.cm
Chemical properties	Copper stability	158ºC x 168hr	≥100
Chemical properties	Flame resistance	VW-1	Pass

Frequently Asked Questions

Q: Are you a factory or trading company? A: We are a professional manufacturer specializing in conduits and heat shrink tubes, holding ISO 9001 and IATF 16949 certifications, providing both OEM and ODM services.

Q: Can you offer free samples? A: Yes, we provide free samples. You only need to cover the shipping costs.

Q: What is your minimum order quantity? A: Different specifications have different MOQs. The general minimum order quantity is 50 meters.

Q: What is your lead time? A: Samples take 1-3 days. Mass production usually takes 3-20 days depending on the quantity after receipt of payment.

Q: How do you deliver the goods? A: We ship via UPS, DHL, TNT, Fedex, or sea freight. All shipments come with tracking numbers for your convenience.

Q: How is the product quality guaranteed? A: We recommend starting with a small trial order to judge our quality. Our products meet strict international environmental and safety standards.
