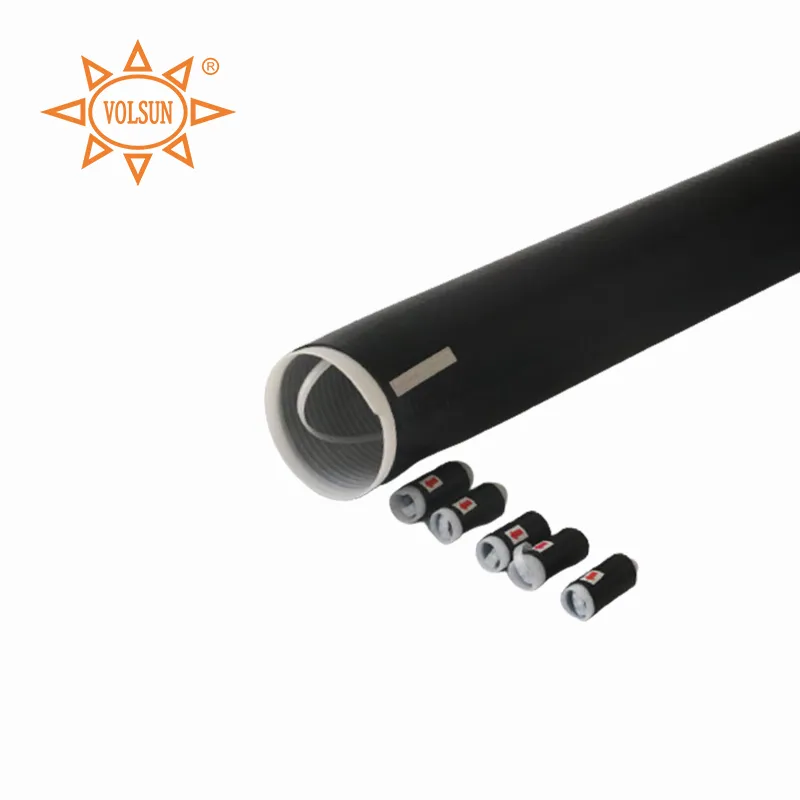

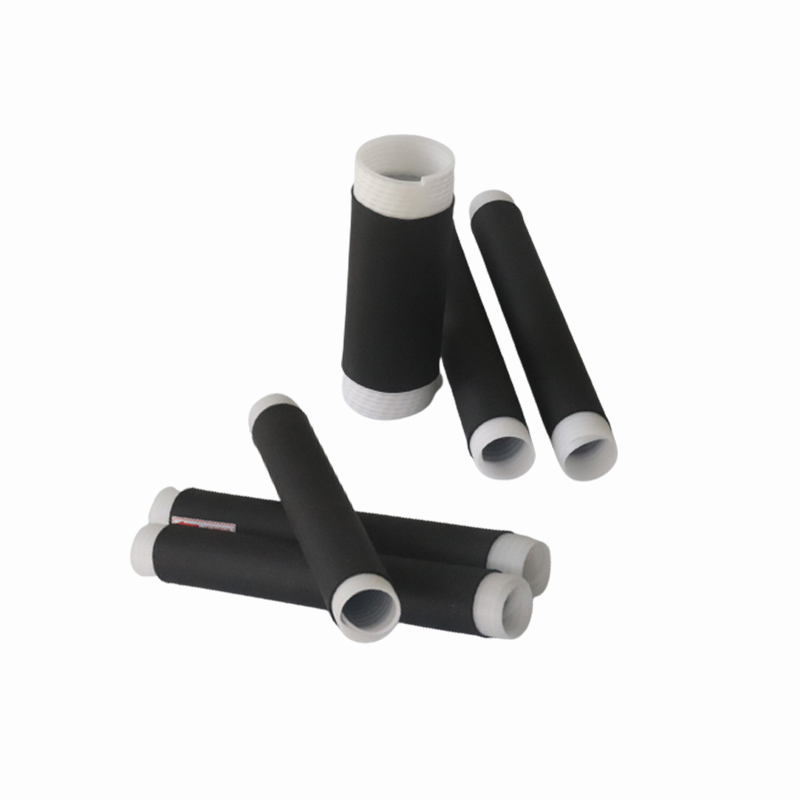

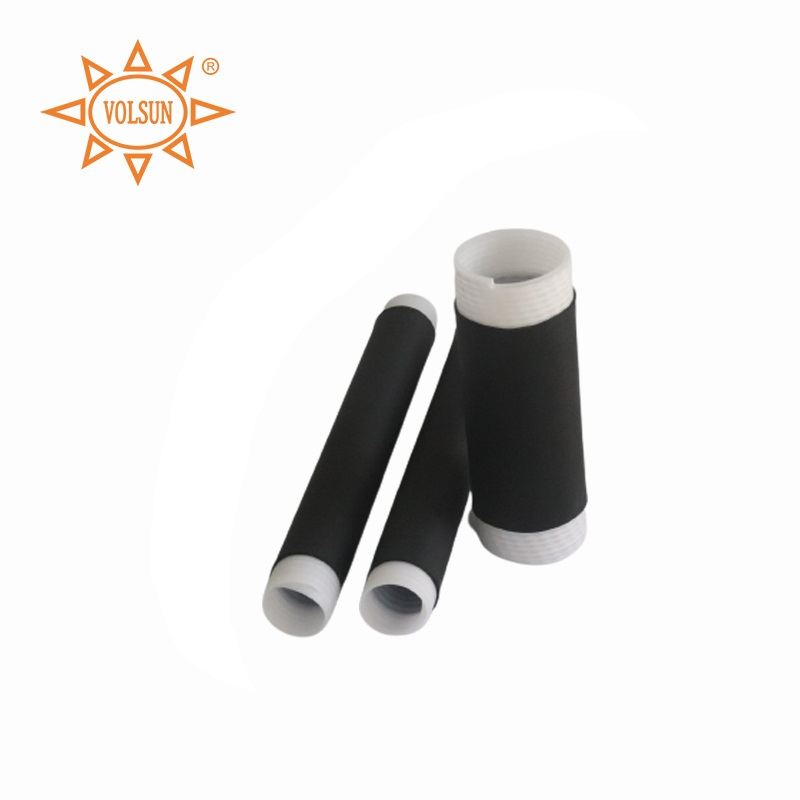

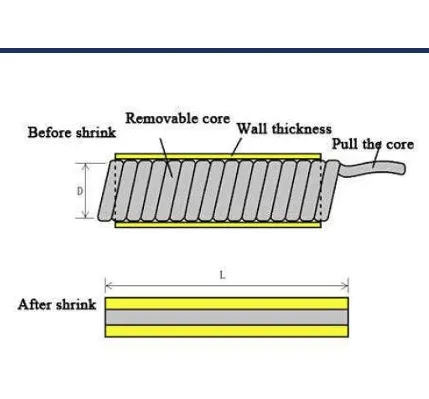

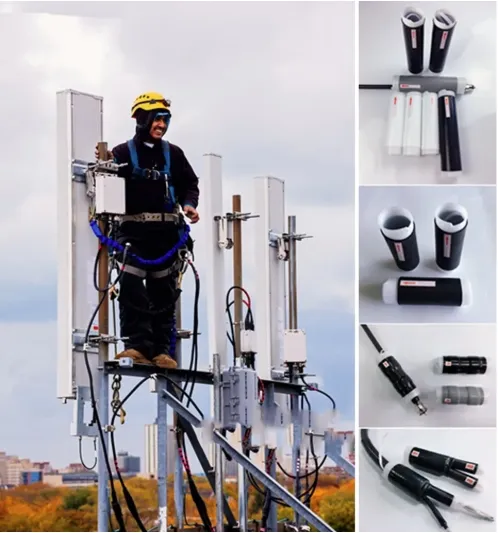

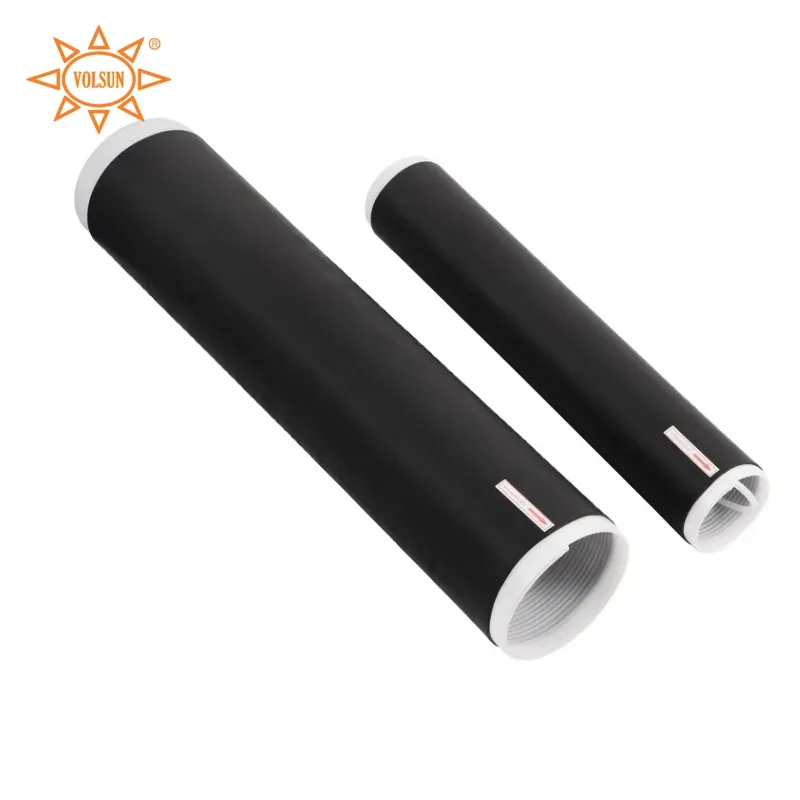

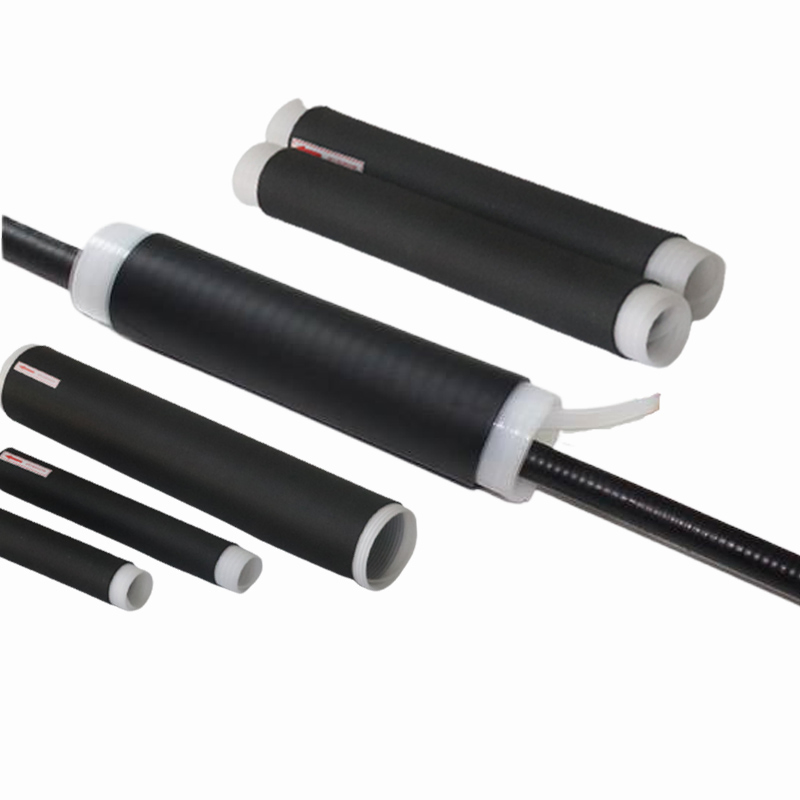

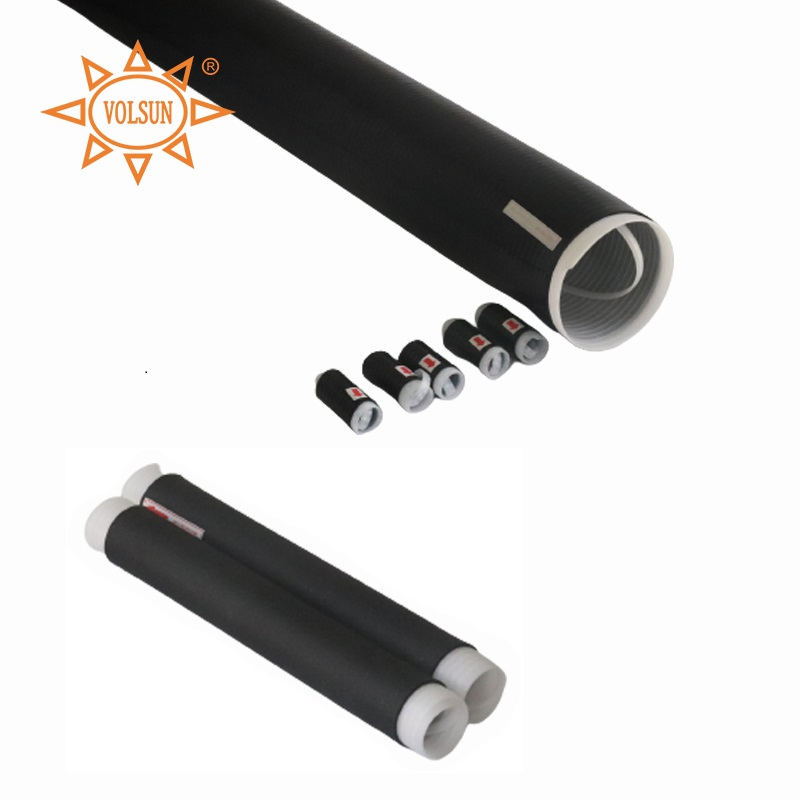

EPDM COLD SHRINK TUBE is a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre-stretched condition.
The core is removed after the tube has been positioned for installation over an in-line connection or terminal lug, allowing the tube to shrink and form a waterproof seal. The insulation tube is made of high-quality EPDM rubber, containing no chlorides or sulphurs.
| Item | Typical Data | Test Standard |
| Hardness Shore | 45±5A | GB/T 531.1 |
| Tensile Strength | ≥8.6MPa | GB/T 528 |
| Elongation at break | ≥600% | GB/T 528 |
| Tear Strength | ≥25MPa | GB/T 529 |
| Dielectric Strength | 15kV/mm | ASTM D149 |
| Model | Inner diameter D(mm) | Min Cable Outer dia. (mm) | Max Cable Outer dia. (mm) | Recovered Length (mm) |
| VE18-3.1 | 18 | 7.8 | 14.3 | 80 |
| VE18-6 | 18 | 7.8 | 14.3 | 152 |
| VE25-6 | 25 | 10.1 | 20.9 | 152 |
| VE32-6.1 | 32 | 12.5 | 28.0 | 229 |
* Size is available to customize!
01 Quality Materials
No recycled materials used. Formulated based on experimental data.
02 Professional Expertise
Over 10 years of R&D experience with dedicated staff for technical support.

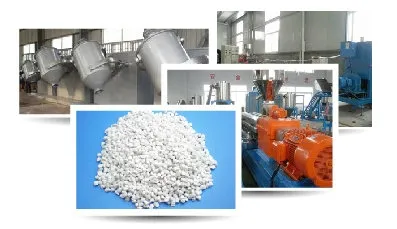

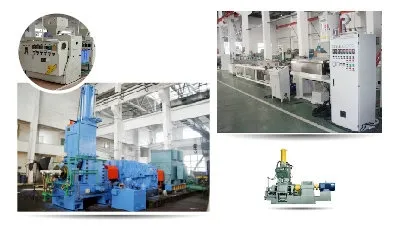

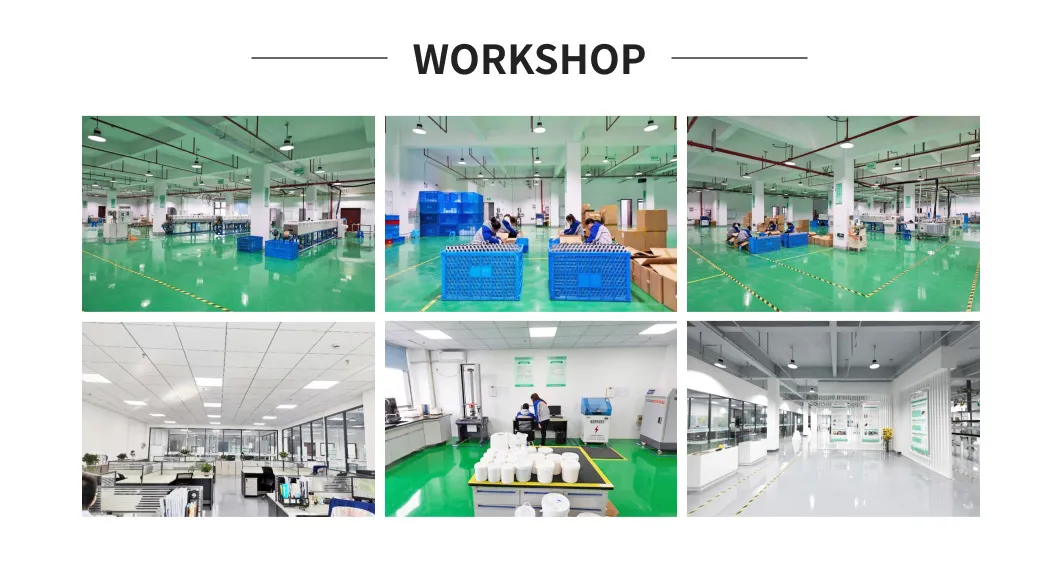

03 Advanced Equipment
Internationally leading production lines including electron linear accelerators.

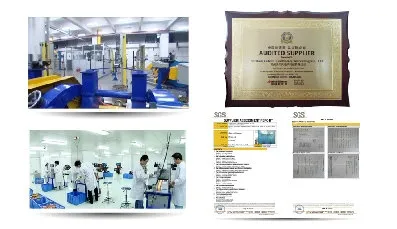

04 Management System
Certified by ISO9001 and IATF16949 for strict quality control.
